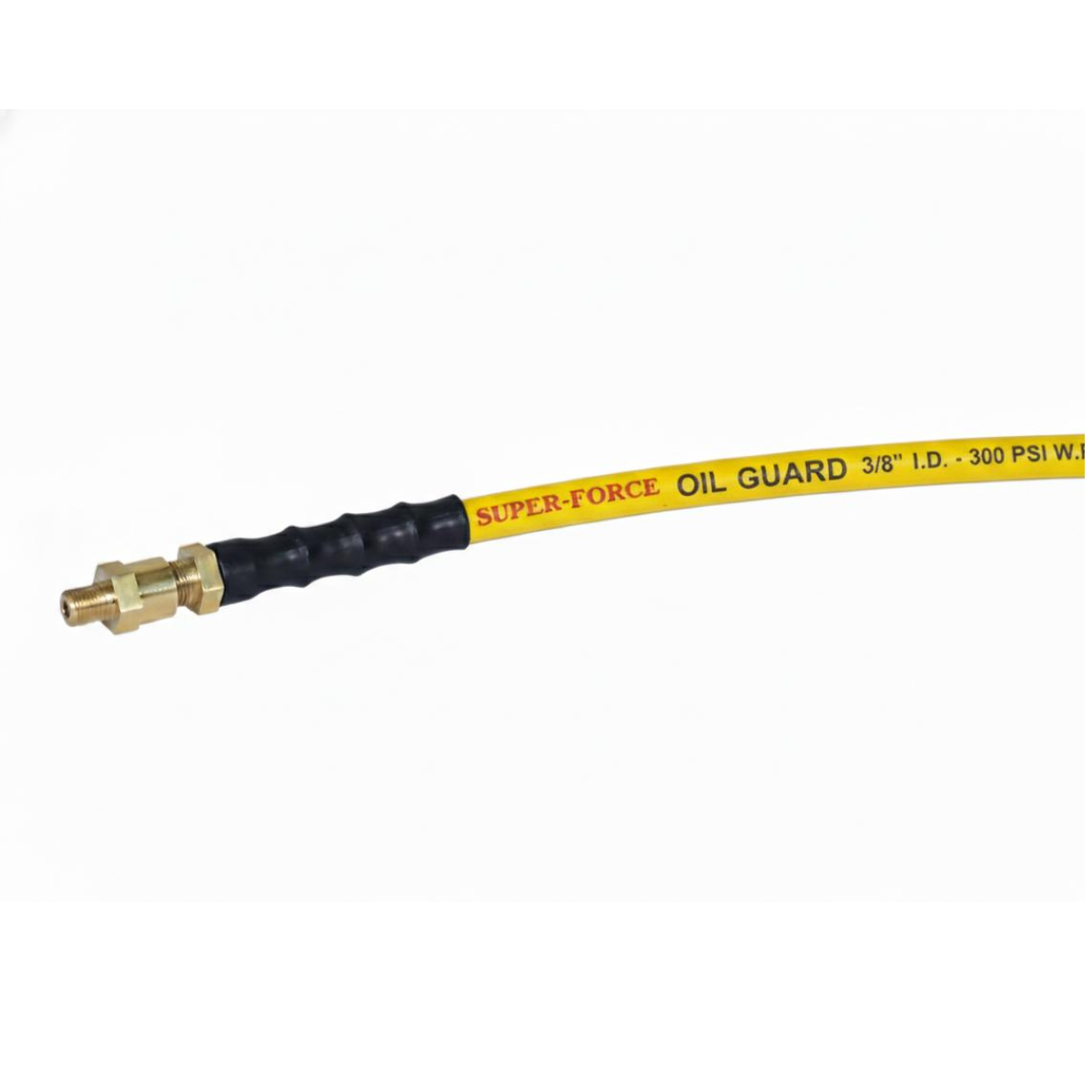

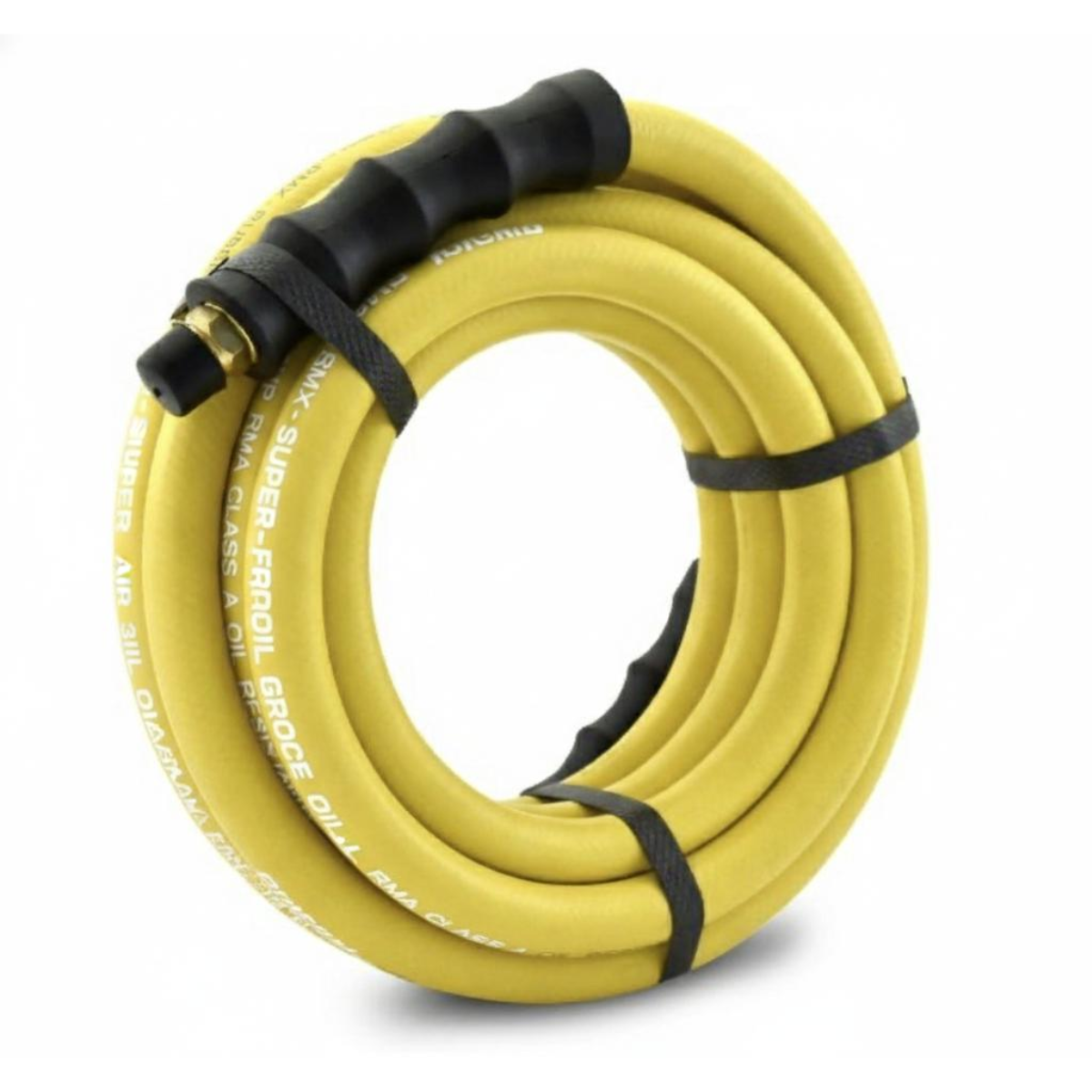

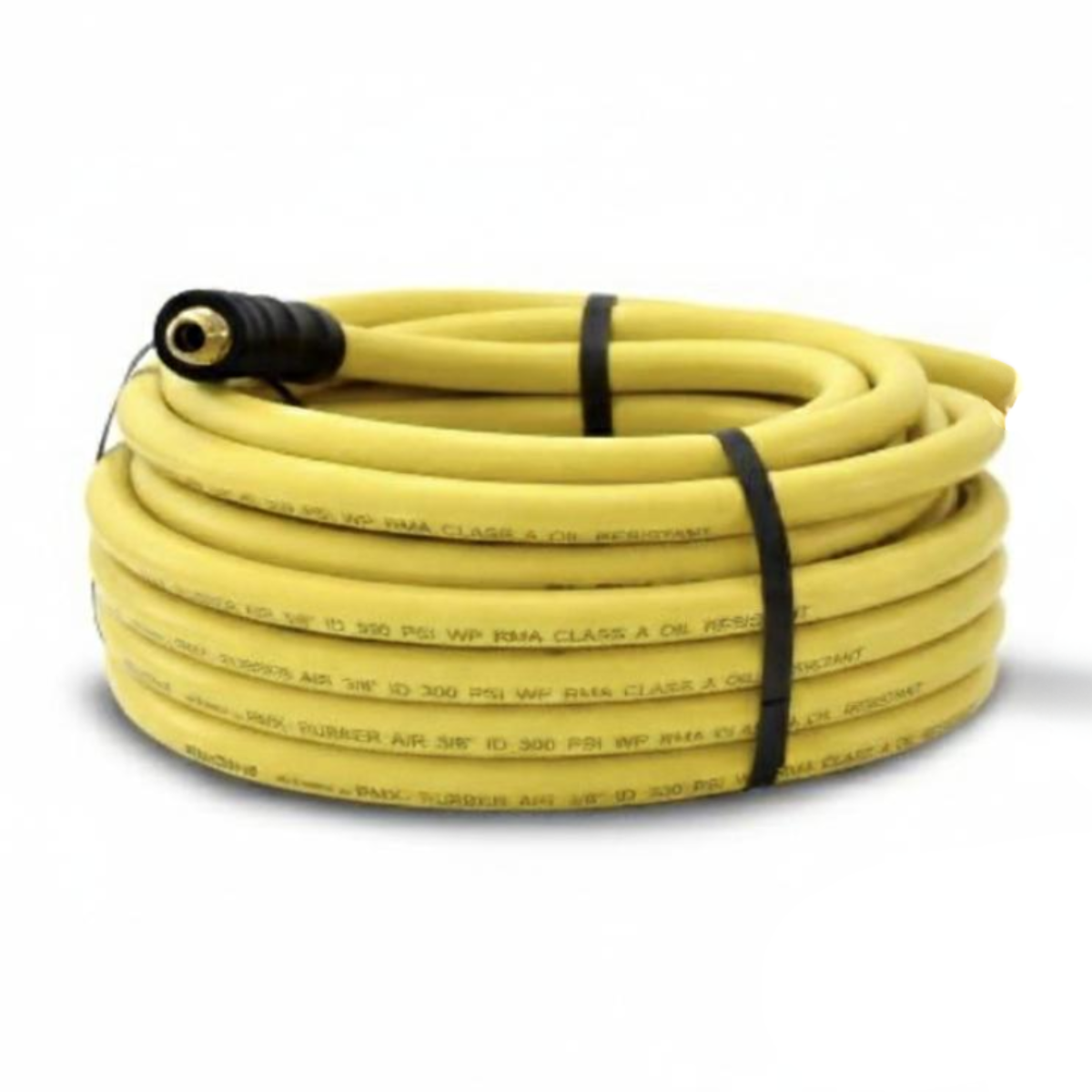

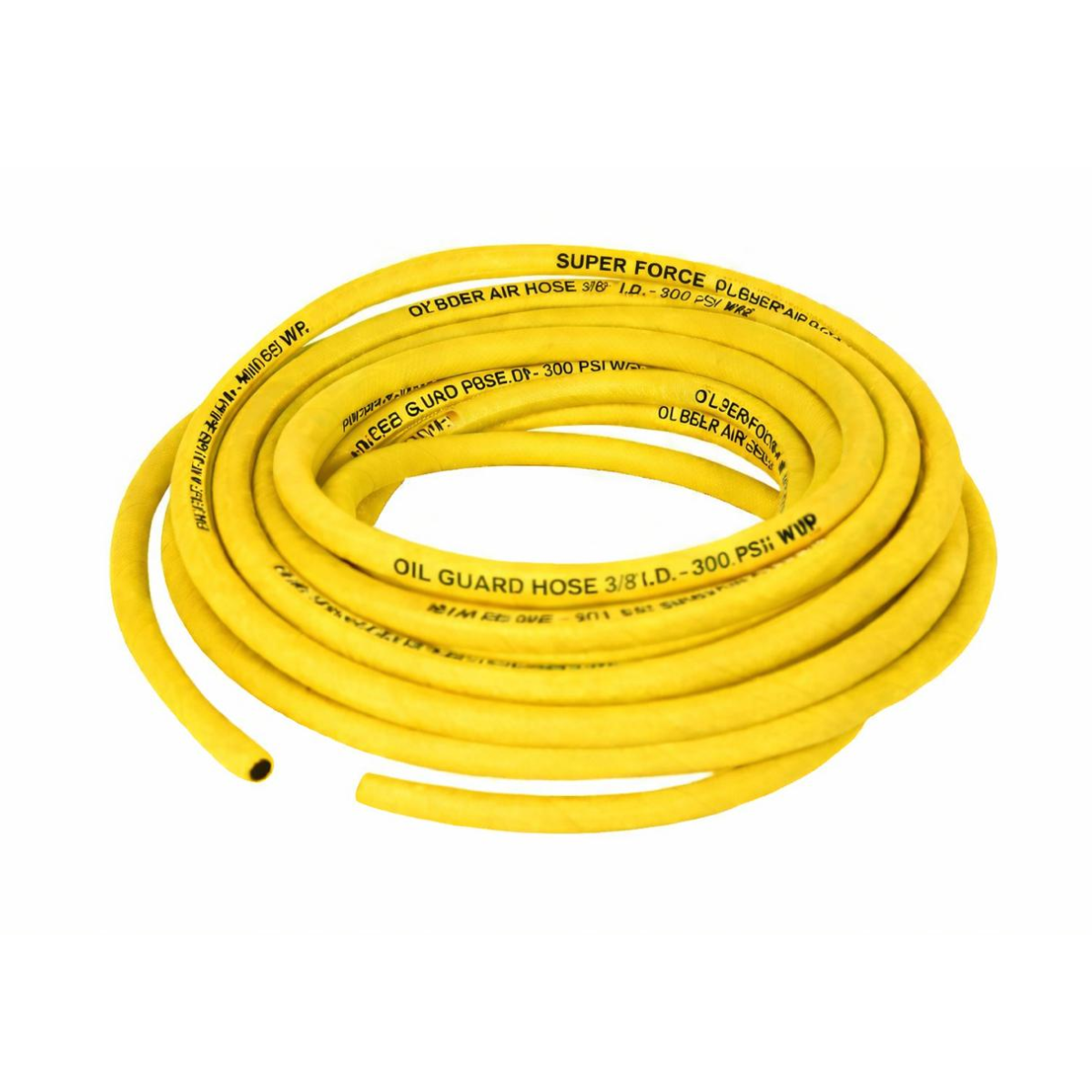

Oil Guard Rubber Air Hoses
Oil Guard is the best SHOP hose on the market today. Â Oil Guard is 100% rubber with a Nitrile core and Nitrile cover giving Oil Guard a Class A Oil-Resistance rating. Â The best oil resistance rating possible. Oil Guard unlike other heavy and stiff rubber air hoses is 30% lighter than traditionally made rubber hoses, more flexible & stronger. Â It is the perfect shop hose where hoses come in contact with oil, diesel fuel, gas, cleaning agents and anything else found in shops including welding spatter and grinding sparks.
Features
- 3 year limited warranty
- RMA Class A oil resistant core tube and cover
- Resists welding spatters and grinding sparks
- 100% rubber construction
- 30% lighter hose than standard rubber air hoses in same class
- Solid Brass fittings superior than aircraft aluminium
- High strength polyester woven braided reinforcement
- 300 PSI working pressure
- 4:1 Safety factor
- Maintains integrity under extreme weather conditions
- Flexibility from -30°F to +190°F
- Ozone resistant
- Abrasion resistant
- Kink Resistant
- 4 finger grip bend restrictor for better use & easier control over the hose.
300 PSI
Working Pressure
4:1
Safety Factor
3 Year
Warranty
-50° F to 190°F
Temperature Range
Features at a glance
RMA Class A Oil Resistant
Oil Guard is perfect for work areas where oil, diesel, grease spillage is a concern. It can remain in constant contact with oil for months & functions as good as new.

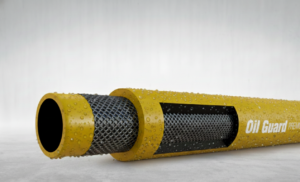

Polyester Braided Reinforcement
High strength polyester braided reinforcement Construction to prevent elongation of hose. Industrial thread and yarn add superior strength with 300 PSI working pressure with 4:1 safety factor.
Lightest, Strongest & Most Flexible
30% Lighter than other Rubber Air Hoses, Constructed with abrasion-resistant exterior cover & polyester braided reinforcement from inside. Durability in extreme conditions from -50° to 190 °F.
Temperature Flexibility
Utmost hot & cold environments are a challenge for all rubber hoses but oil guard rubber hose have flexibility to handle hot weather temperature upto 190°F and cold weather temperature upto -40°F. Extension Air Hose
| Product | Part No. | Inner Diameter (Inch) | Length (Feet) | Fittings (Inch) | Action |
|---|---|---|---|---|---|
 |
OG2210 | 1/2 | 10 | 1/2 Male NPT | Add to Inquiry |
|
OG2215 | 1/2 | 15 | 1/2 Male NPT | Add to Inquiry |
|
OG2110 | 3/8 | 10 | 1/4 Male NPT | Add to Inquiry |
|
OG2115 | 3/8 | 15 | 1/4 Male NPT | Add to Inquiry |
General Purpose Air Hose
| Product | Part No. | Inner Diameter (Inch) | Length (Feet) | Fittings (Inch) | Action |
|---|---|---|---|---|---|
|
OG3210 | 1/2 | 10 | 1/2 Male NPT | Add to Inquiry |
|
OG3215 | 1/2 | 15 | 1/2 Male NPT | Add to Inquiry |
|
OG7810 | 3/8 | 10 | 1/4 Male NPT | Add to Inquiry |
|
OG7815 | 3/8 | 15 | 1/4 Male NPT | Add to Inquiry |
|
OG7100 | 1/2 | 100 | 1/2 NPT w/ 3/8 NPT reducer | Add to Inquiry |
|
OG7225 | 1/2 | 25 | 1/2 NPT w/ 3/8 NPT reducer | Add to Inquiry |
|
OG7250 | 1/2 | 50 | 1/2 NPT w/ 3/8 NPT reducer | Add to Inquiry |
|
OG8100 | 3/8 | 100 | 1/4 Male NPT | Add to Inquiry |
|
OG8825 | 3/8 | 25 | 1/4 Male NPT | Add to Inquiry |
|
OG8835 | 3/8 | 35 | 1/4 Male NPT | Add to Inquiry |
|
OG3850 | 3/8 | 50 | 1/4 Male NPT | Add to Inquiry |
